LCD drivers - INPUT drivers

LCD DRIVERS

NOTE: To use these drivers you need to be running DAMP v0.95 WIP 8 or later

These drivers are for use with the -lcd option in DAMP. Note that neither Hedgehog Software, nor Matt Craven, nor the driver author can be held responsible for the consequences of using these drivers. You do so at your own risk.

If you can't see a driver for your LCD here, have a read of LCDDRV.TXT in the main DAMP distribution, and see if you can write one. If you do write a driver, be sure to submit it to drivers@damp-mp3.co.uk

DriverDescriptionVersionAuthorSchematic

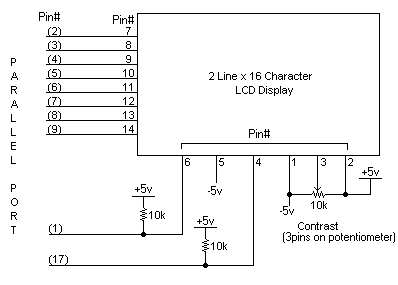

LCDWIRE1.scHD44780 driver for wiring scheme 1. This is included with the main DAMP download.1.70Andy Chandlerlcdwire1.gif

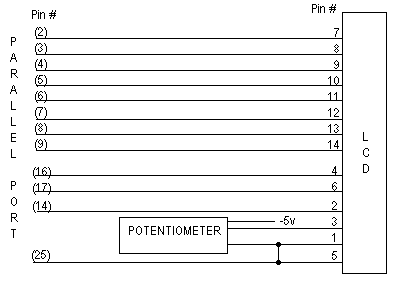

LCDWIRE2.scHD44780 driver for wiring scheme 2. This is included with the main DAMP download.1.50Klaus Peichllcdwire2.gif
LCDWIRE2.zipHD44780 Wiring scheme 2, but using only the top line.1.50Klaus Peichllcdwire2.gif

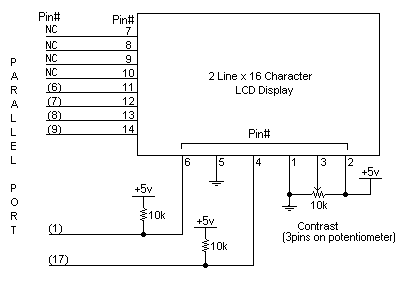

LCDWIRE3.zipHD44780 16x2 Driver 4-bit1.80Eduardo Kuritalcdwire3.gif

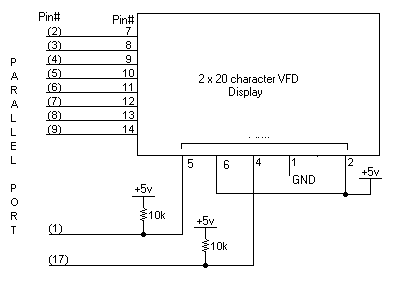

LCDWIRE4.zipCU20029ECPB-U1J 20x2 VFD Driver1.90Dennis Rekveldlcdwire4.gif
634.zipCrystalfontz 20x4 634 Serial LCD Driver1.20Kevin Fowlksnot supplied
LCD2-LUT.zipHD44780 Wiring scheme 2, plus this driver uses a look-up-table so you can map the ASCIIs from the ID3-tag to the ones of the LCD and it supports upload from user defined characters to LCD-character-memory1.71Christian Eninglcdwire2.gif
FUTVFD.zipDriver for the Futaba Corp. 2x40 M402SD06G L VFD1.10Matt Craven & Vincenz DregerNot supplied
PicAnLCD.zipDriver for the Pic-an-LCD from www.bgmicro.com0.5Michael DrobNot supplied
vt100.zipDriver for a VT100 terminal attached via a serial port (designed for a PalmPilot running a VT100 emulator)1.0Adam BriggsNot supplied
alex.zip20x4 parallel port driver1.0Alex VitzthumNot supplied
INPUT DRIVERS

These drivers are for use with the -indrv option in DAMP. Note that neither Hedgehog Software, nor Matt Craven, nor the driver author can be held responsible for the consequences of using these drivers. You do so at your own risk.

If you can't see a driver for your desired input device here, have a read of INDRV.TXT in the main DAMP distribution, and see if you can write one. If you do write a driver, be sure to submit it to drivers@damp-mp3.co.uk

DriverDescriptionVersionAuthorSchematic
in_lpt.zipInput driver for 5-key low-active input from LPT11.0Klaus Peichlin_lpt.jpg
in2_lpt.zipHere's the front panel keypad driver for those constructing Martin Pipe's MP3 player, as detailed in the March and April 2000 issues of 'Electronics and Beyond' 1.10Martin PipeNot supplied
in_lpt2.zipBased on in_lpt but features multiplexing.1.0Andrew JardineNot supplied
